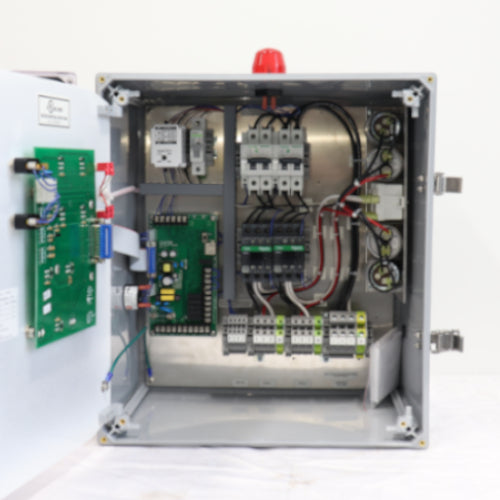

See Water WS Series®-1023 Single Phase Duplex Control Panel

The WS Series® single-phase duplex control panel—your ultimate solution for managing two powerful pumps in dewatering, wastewater, and sewage tasks. Equipped with a sleek, clear-front NEMA 4X enclosure, robust IEC-rated contactors, and reliable motor protective switches, it's built to perform.

• Duplex Single Phase: 120/208/240VAC
• Pump Full Load Amp Rating: 15.0-22.0 FLA
• Seal Failure Circuit and Indicator Lights - Duplex

Features

• UL listed for the United States and Canada (panel and controls)
• Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
• Pump control visible indicators: Pump #1 and #2 hand-off-auto (H.O.A.) switch, green Pump Run lights, red Pump Fault lights with reset button, and Power On light
• Duplex provides: Two-pump alternation and high demand two-pump operation
• Alarm visible indicators: Red beacon alarm light, alarm test and silence buttons
• Remote monitoring dry contacts: High Liquid, Pump Run(s), Pump #1 Fault, and Pump #2 Fault
• Upgraded pump protection: Motor protective switches included for both pumps (branch circuit protection, adjustable overload and disconnect) and thermal cutout with indicators
• Alarm horn sounds at 85 decibels at 10 feet

Applications

• Sewage pump chambers
• Grinder pumps
• Sump pump basins
• Lift stations
