See Water WS Series® Three Phase Duplex Control Panel

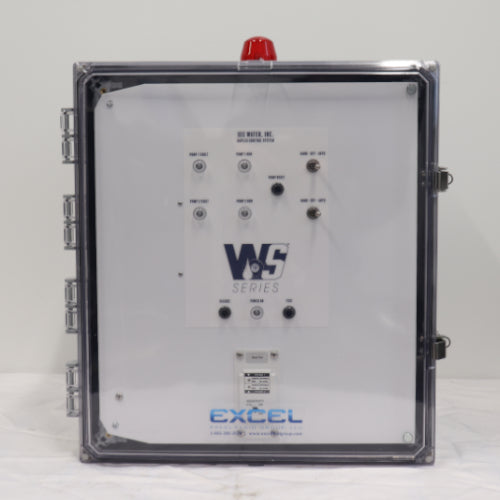

The WS Series® three-phase duplex control panel—your go-to powerhouse for efficiently managing dual pumps in dewatering, wastewater, and sewage operations. With its stylish, transparent NEMA 4X enclosure, durable IEC-rated contactors, and dependable motor protective switches, it's engineered for excellence.

• Duplex Three Phase: 208/240/480VAC
• Pump Full Load Amp Rating: 17.0-23.0 FLA
• Seal Failure Circuit and Indicator Lights - Duplex

Features

• UL listed for the United States and Canada (panel and controls)
• Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
• Pump control visible indicators: Pump #1 and #2 hand-off-auto (H.O.A.) switch, green Pump Run lights, red Pump Fault lights with reset button, and Power On light
• Duplex provides: Two-pump alternation and high demand two-pump operation
• Alarm visible indicators: Red beacon alarm light, alarm test and silence buttons
• Remote monitoring dry contacts: High Liquid, Pump Run(s), Pump #1 Fault, and Pump #2 Fault
• Upgraded pump protection: Motor protective switches included for both pumps (branch circuit protection, adjustable overload and disconnect) and thermal cutout with indicators
• Alarm horn sounds at 85 decibels at 10 feet

Applications

• Sewage pump chambers
• Grinder pumps
• Sump pump basins
• Lift stations
